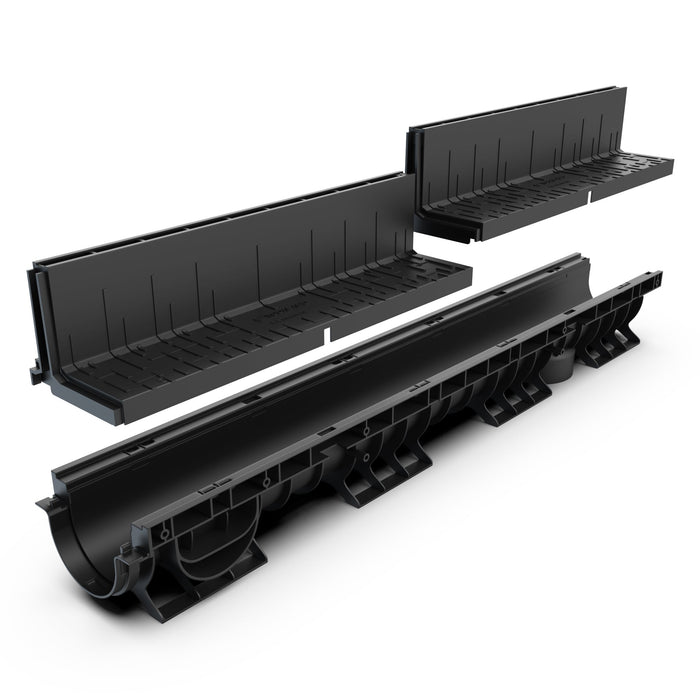

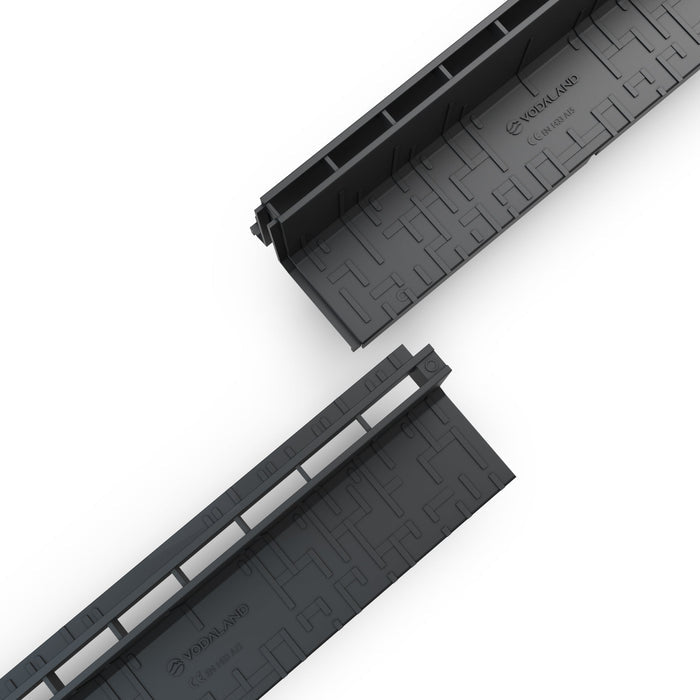

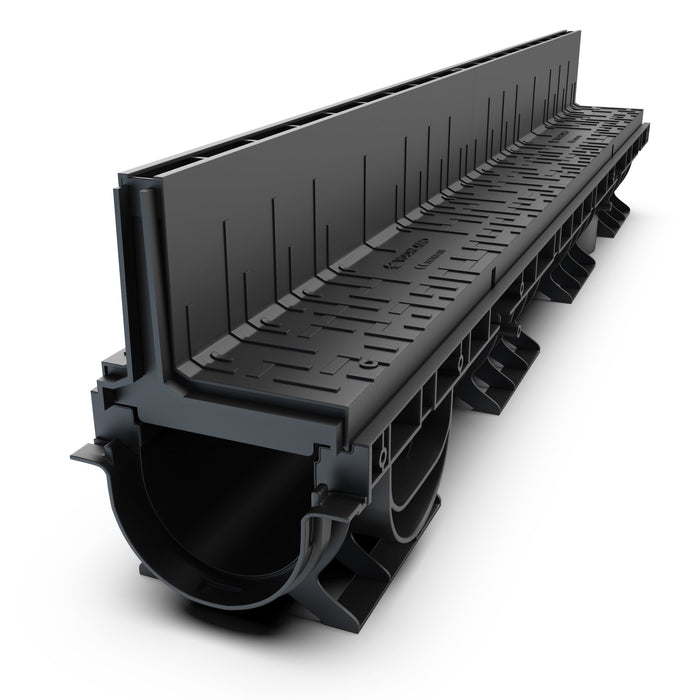

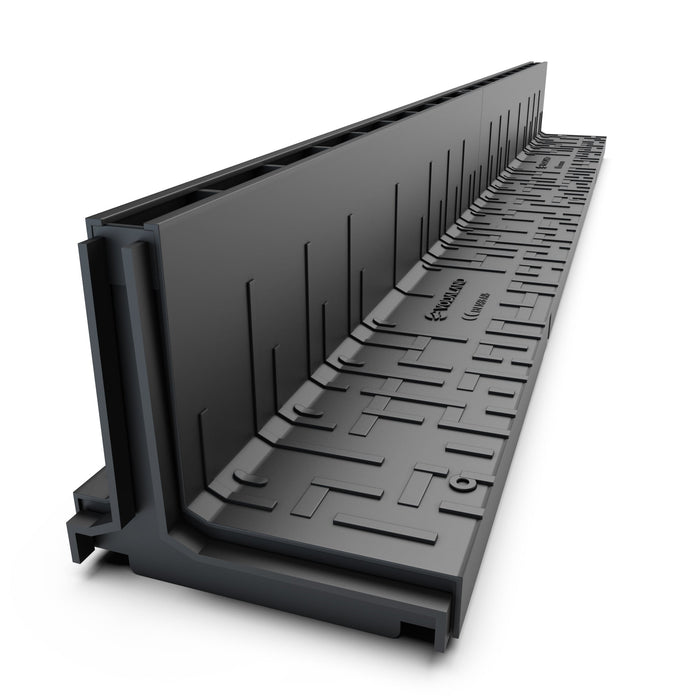

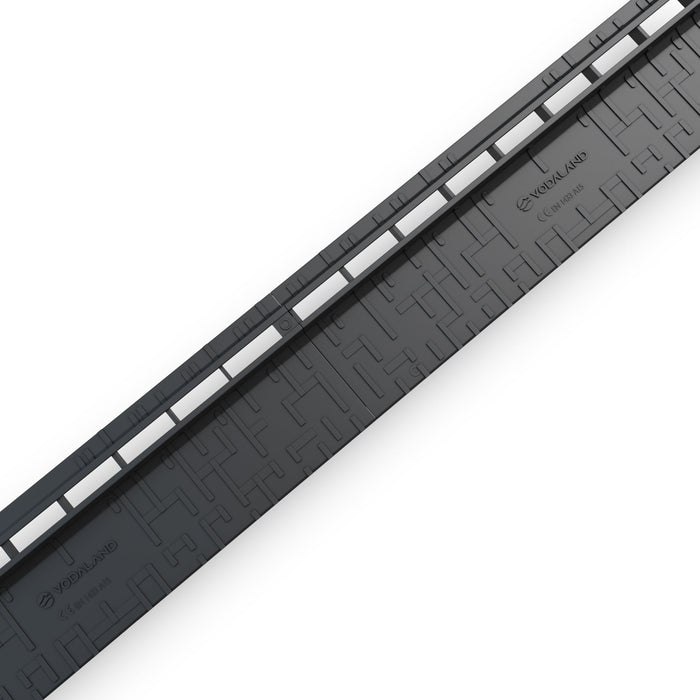

Plastic Slot Drain System
Pre-Slope / 3 FT Length
$133.59
Sale price
$133.59
Regular price
$183.00
Skip to product information
Key Features:
● PPE Plastic Material- Provides durability and corrosion resistance.
● A-C Load Class Rated - Can withstand up to 56,000 LBS per EN 1433 (400KN).
● Compatible with any 4” Base Plastic Channel Drain.
● Slot Grate Cover - ADA/Heel Proof cover for additional safety and debris protection.
Expanded Product Overview:
The Plastic Slot System is an excellent slot channel drain that allows a modern and low profile finish. A system that offers compatibility with Vodaland’s 4” Channel Drain System. Allowing you to have options for both Pre Slope or Neutral drainage systems.
Common Application:
● Patios
● Pool
● Porches
● Walkways
Technical Specifications:
● Material: PPE Plastic Grate
● Channel Length: 3.3 FT (39 Inches)
● Slot Grate Width: ½” Internal & 1” External
● Slot Grate Height: 3 ⅞ Inches
● Slot Grate Length: 19 ⅞ Inches
● Load Class: A-C Load Classification (per EN 1433)
Plastic Slot Drain System
$133.59
Sale price
$133.59
Regular price
$183.00
Plastic Slot Drain System | A-C Load Class |

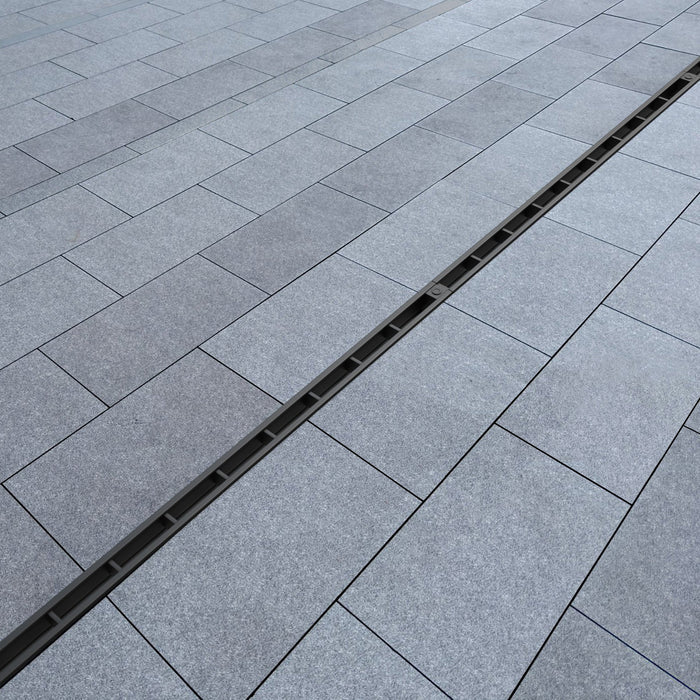

Vodaland designed the Plastic Slot System to provide a modern and low profile finish, as well as durable and corrosion resistant material made system. A surface level slot drain system that serves such aesthetic is excellent for pool side, patios, porches, and more.
Key Features:
● PPE Plastic Material- Provides durability and corrosion resistance.
● A-C Load Class Rated - Can withstand up to 56,000 LBS per EN 1433 (400KN).
● Compatible with any 4” Base Plastic Channel Drain.
● Slot Grate Cover - ADA/Heel Proof cover for additional safety and debris protection.
Expanded Product Overview:
The Plastic Slot System is an excellent slot channel drain that allows a modern and low profile finish. A system that offers compatibility with Vodaland’s 4” Channel Drain System. Allowing you to have options for both Pre Slope or Neutral drainage systems.
A durable and chemical resistance system that is made out of 100% Recycle Plastic material. Perfect system for both residential and commercial applications that is also, suitable for pools, patios, walkways, and even driveway projects as it can also withstand up to 56,000 LBS (A-C Load Classification).
Common Application:
● Patios
● Pool
● Porches
● Walkways
Technical Specifications:
● Material: PPE Plastic Grate
● Channel Length: 3.3 FT (39 Inches)
● Slot Grate Width: ½” Internal & 1” External
● Slot Grate Height: 3 ⅞ Inches
● Slot Grate Length: 19 ⅞ Inches
● Load Class: A-C Load Classification (per EN 1433)
Technical Resources: Load Class Compliance
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
