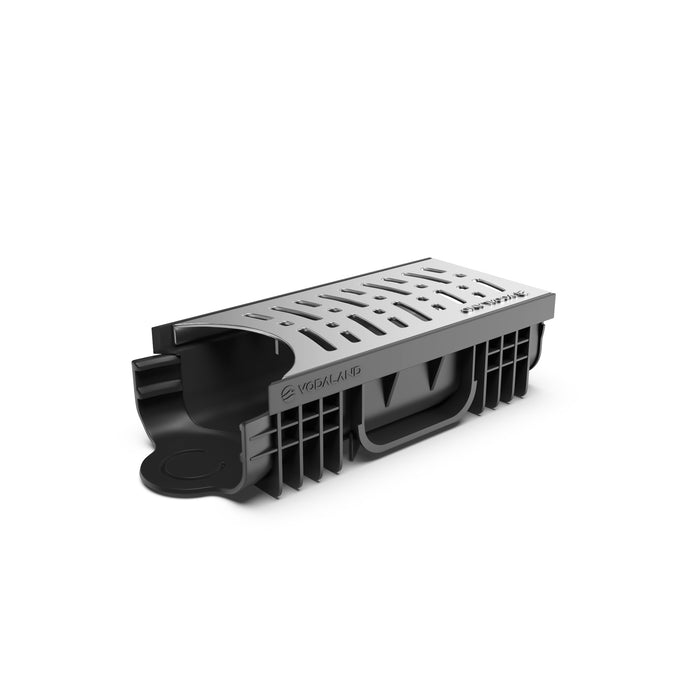

Easy Curve Stainless - Gamma

Easy Curve Stainless - Gamma– User friendly and reliable

This Easy Curve Stainless - Gamma is designed to be the final piece of the Easy Curve system.

Key Features
● Snap and lock connection – Allows for a simple and fast installation.
● Made from PPE plastic & Stainless Steel – Offers lightweight handling for easy one-person installation.
● Removable grates – Gratings snap into place and are easy to remove for cleaning purposes.
● A Load Classification – Suitable for pedestrian applications.
● Compatible with Easy TWO Closed End cap –Allows the system to be securely closed when connection to the Easy TWO Channel System is not being used.

Expanded Product Overview:

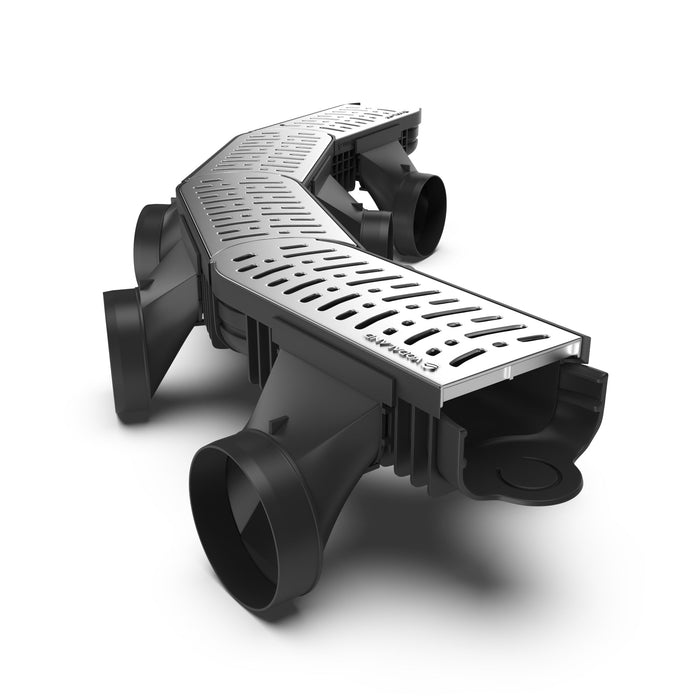

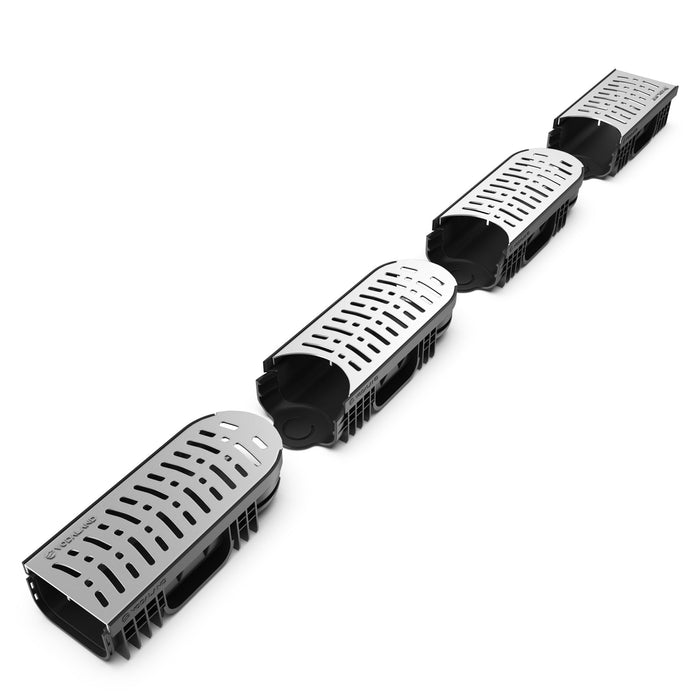

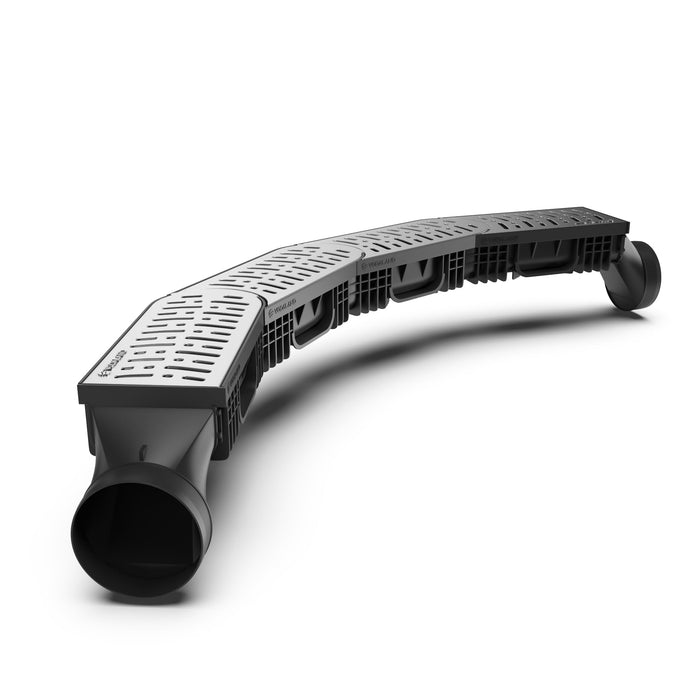

The Easy Curve Stainless - Gamma unit is the ending piece in our Easy Curve Stainless Vodaland tench drain system. One end of the Easy Curve Stainless - Gamma is curved, meant to connect directly into the Easy Curve Stainless - Beta units. The opposite end is a straight edge, allowing for seamless integration with the Easy TWO -Channel system or the option to cap it with a Closed End Cap to stop water flow. The Gamma unit (female end) is required at the end of any Easy Curve Stainless run that will not form a complete circle. It is specifically for layouts where water flow needs to be stopped or transitioned into a straight Easy TWO channel. Designed for compatibility and secure locking on both ends, the Gamma Unit ensures a smooth, watertight transition between straight and curved components in your drainage layout.

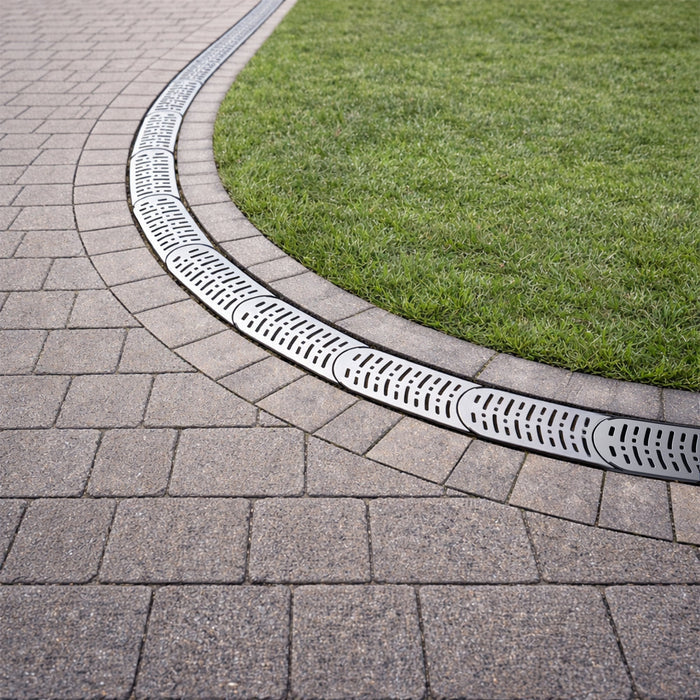

Common Applications:
● Walkways
● Gardens
● Patios
● Court yards
● Landscaping

Technical Specifications:
● Material: PPE Plastic & Stainless Steel
● Dimensions: 11 ⅞” X 4 ⅞” X 3”
● Load Capacity: A Load Class – 3,300 LBS
● Connection type: Snap and Lock
● Color: Black & Stainless Steel
● Article: 08810925.2-R3
