4" Ultra Thin Channel - Balcony & Deck System

Ultra Thin Channel - Balcony & Deck System

This 304 Stainless Steel and ADA Compliant/Heel Proof Channel is designed to be an A Load Class Balcony and Deck drainage solution.

Key Features:
● A Load Class - Withstand load capacities up to 3,300 lbs.
● High Durability - 304 quality stainless steel.
● ADA Compliant/Heel Proof - Safe for pedestrian zones with narrow slot openings.
● Ultra Thin - Compatible with majority of depth restrictive applications.
● Outlet Options - No Outlet, Center Outlet, Side Outlet.

Expanded Product Overview:

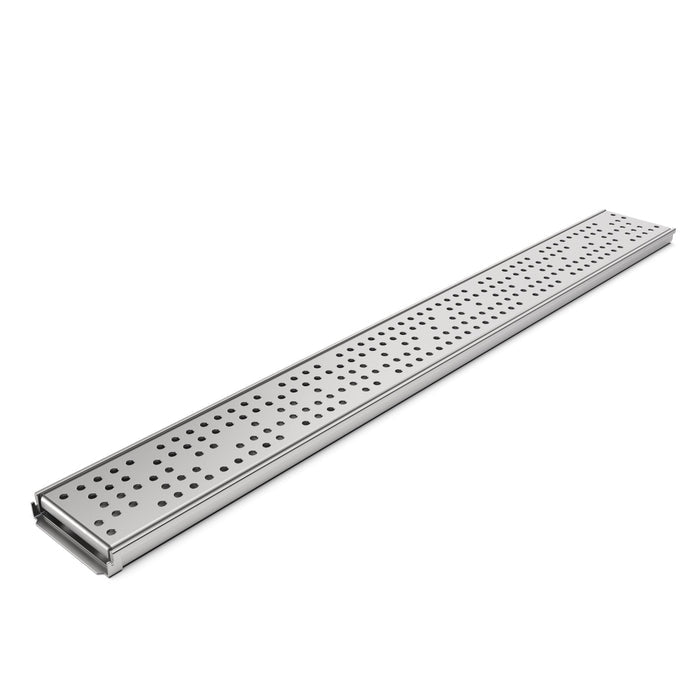

The 4” Width Ultra Thin Channel - Balcony & Deck System is made from 304-grade stainless steel, is ADA Compliant/Heel Proof, and made specifically for depth restrictive balcony and deck applications. This system has a slim profile for an effective and aesthetically pleasing balcony and deck application. The load rating meets A load class requirements and provides safe, effective, and durable drainage while being pedestrian traffic rated.

The system comes in three different channel types - No Outlet, Center Outlet, and Side Outlet. Both the Center Outlet Channel and the Side Outlet Channel type will have a built in 4” diameter outlet running vertically off of the bottom of the channel where the No Outlet Channel will have no built in outlet.

Common Applications:

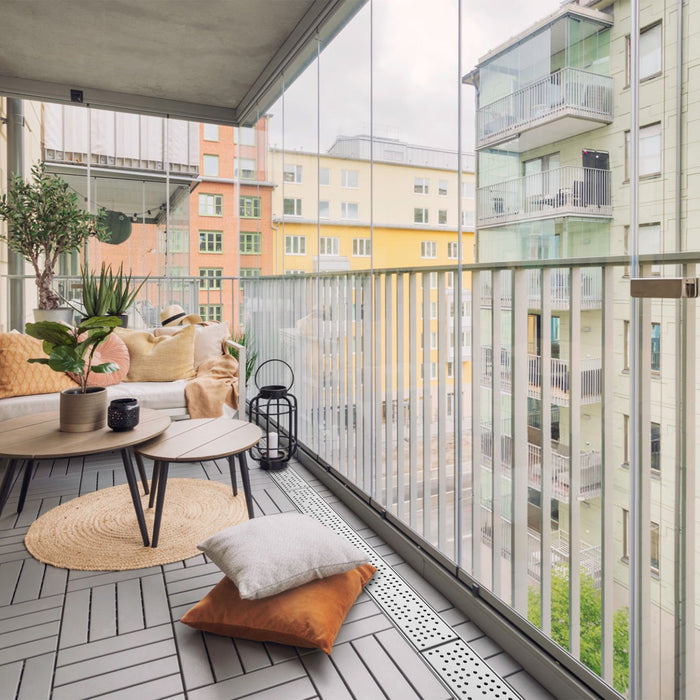

● Balconies

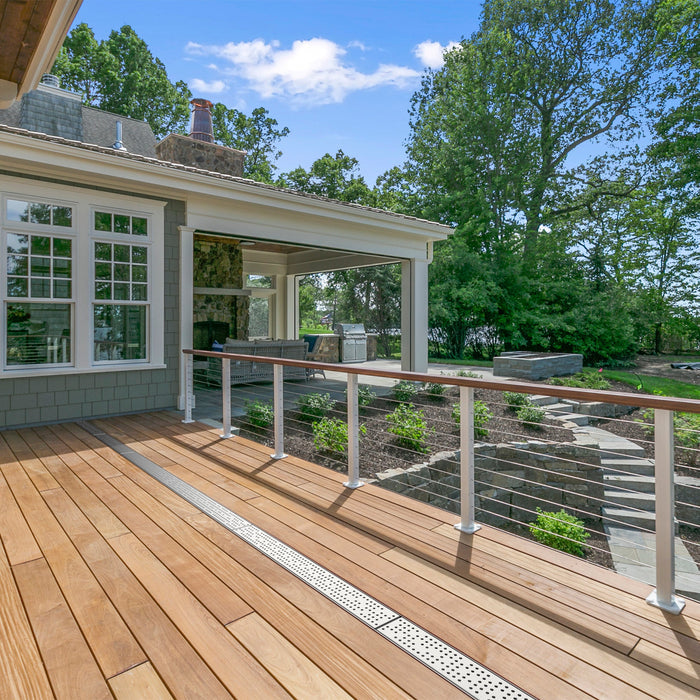

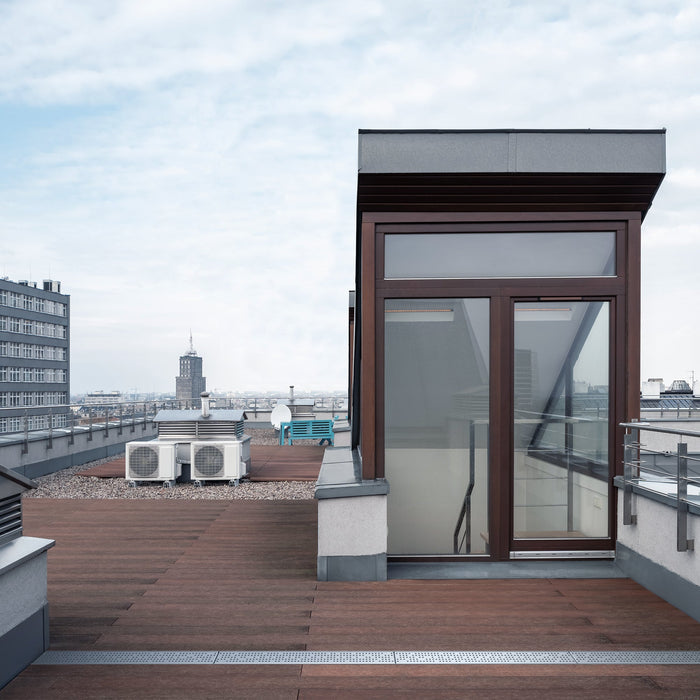

● Decks
● Pool Installations

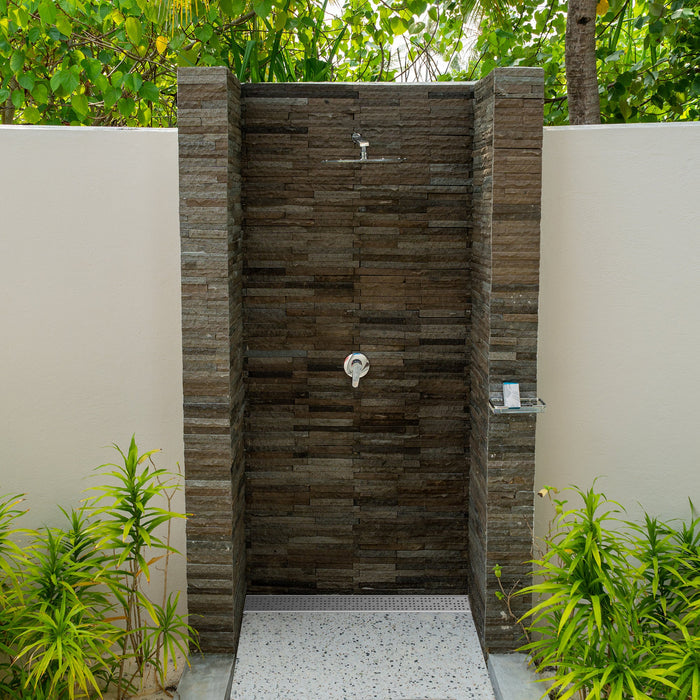

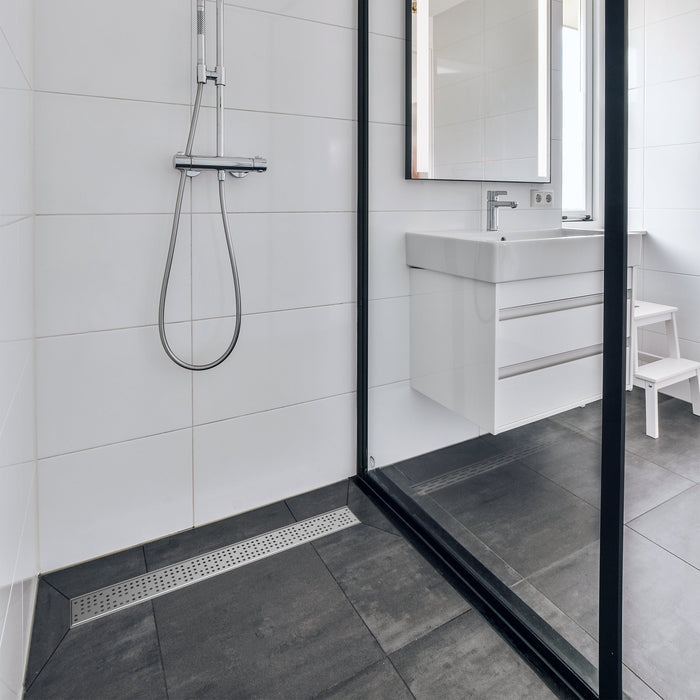

● Showers and rinse areas

Technical Specifications:
● Material - 304 Stainless Steel
● Length - 39 ⅝” L
● Width - 4 ¾” W
● Load Class - A (Light, Pedestrian Traffic)
● Article Number:
   a. No Outlet - 994501
   b. Center Outlet - 994502
   c. Side Outlet - 994503

The Ultra Thin Channel - Balcony & Deck System is made for balcony and deck applications to provide durable and effective drainage in depth restrictive areas.
