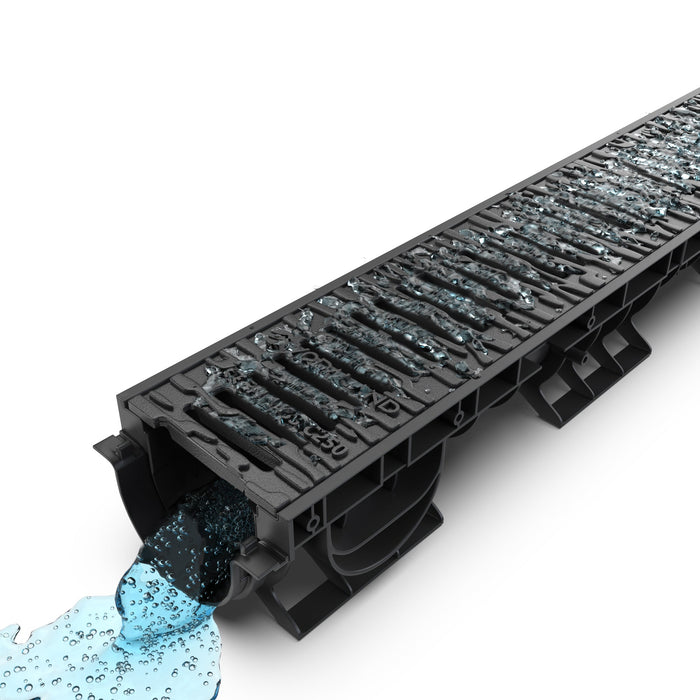

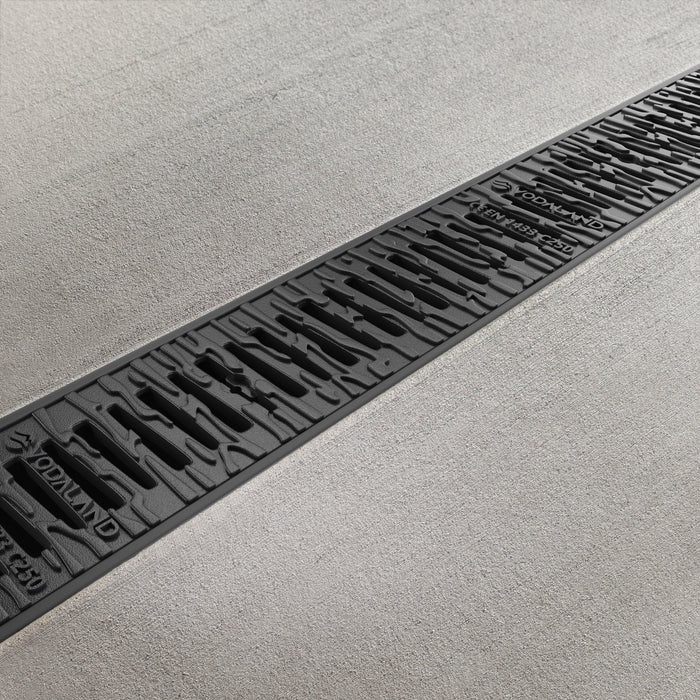

4” Channel Ductile Cast Iron Slotted Package - Maximum Durability and Performance
The 4” Channel Ductile Cast Iron Slotted Package is made for durability and performance in areas with heavier automotive traffic.
Key Features:
● C Load Class – Suitable for vehicular applications.
● Cast Iron Grate –Our grates are built for longevity and durability made from KTL laminated ductile cast iron.
● Removable Grates – Meant for easy access to clean and maintain the drain.
Expanded Product Overview:

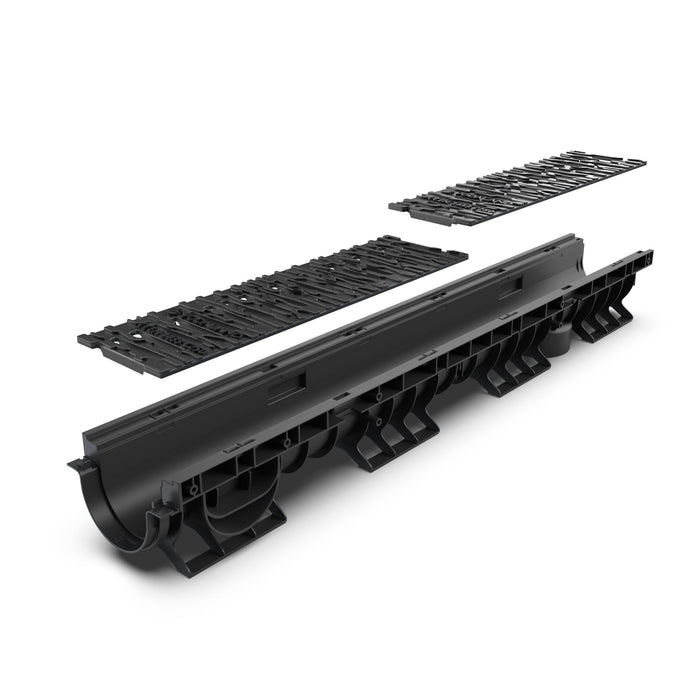

The 4” Channel Ductile Cast Iron Slotted Package is built to handle heavier automotive traffic with ease. The KTL laminated cast iron grate offers excellent corrosion resistance and long-lasting durability. This channel drain system is an ideal solution for shops, commercial properties, and transport hubs. Anywhere reliable performance is needed in high traffic areas! The channel body is available in two options: neutral channels with consistent depth, and pre-sloped channels that increase in depth by 1% along the run. All channels feature a snap-and-lock connection for easy, continuous installation at various lengths. Each channel also includes two 90-degree turn options for added layout flexibility.
Common Applications:
● Residential Driveways
● Parking Lots
● Commercial Properties
● Transport Hubs
● Recreational and Event Venues
Technical Specifications:
● Material: PPE Plastic – Ductile Cast Iron (Grating)
● Dimensions: 39 ⅜” L X 6 ⅛” W
●Load Capacity: C Load Class – 55,000 LBS
● Internal Width: 4”
● Connection type: Snap and Lock
● Grating color: Ductile Cast Iron
