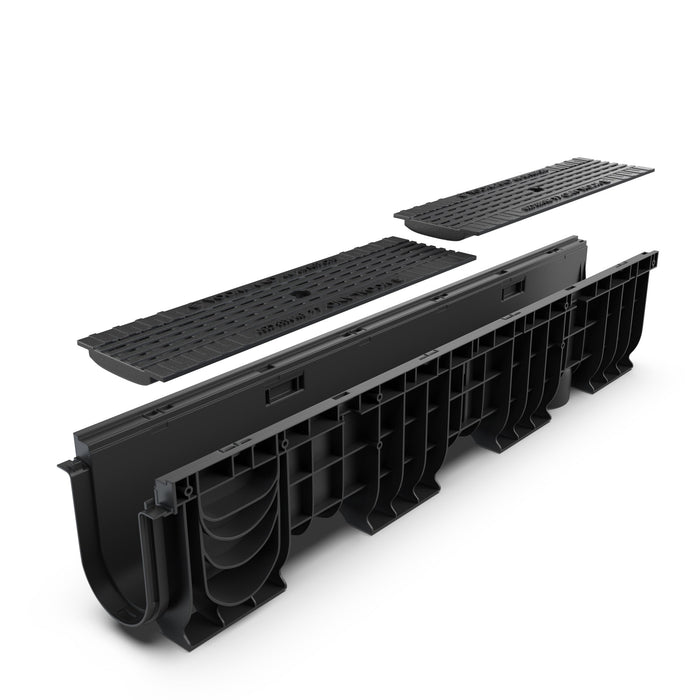

  • Neutral (no slope) / 8 INCH DEPTH
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • 4" Channel Cast Iron ADA Package - Vodaland
  • Neutral (no slope) / 8 INCH DEPTH
4" Channel Cast Iron ADA Package

4" Channel Cast Iron ADA Package

$153.60
$153.60 $192.00
Title

4” Channel Cast Iron ADA Package – Safety with Heavy Duty Strength

The 4" Channel Cast Iron ADA Package is built for durability, reliable performance, and pedestrian safety.

 Key Features
● C Load Class – Suitable for vehicular applications.
● Pre-sloped – Built in slope, as the run gets longer the channels will continuously get deeper in depth.
● Neutral – Engineered with the same depth throughout the channels.
● Removable Grates – Easy access for maintenance.
● ADA/Heel Compliant – Built to keep walkways safe and accessible for everyone.

Expanded Product Overview:

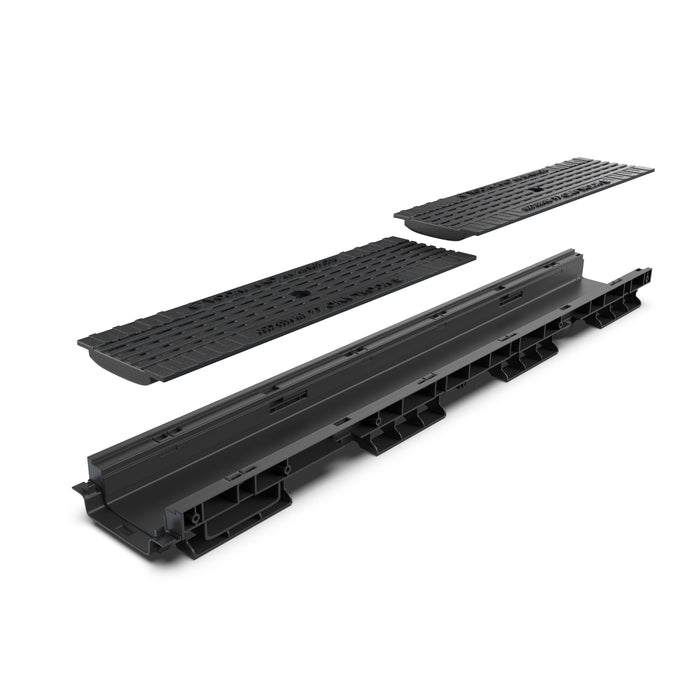

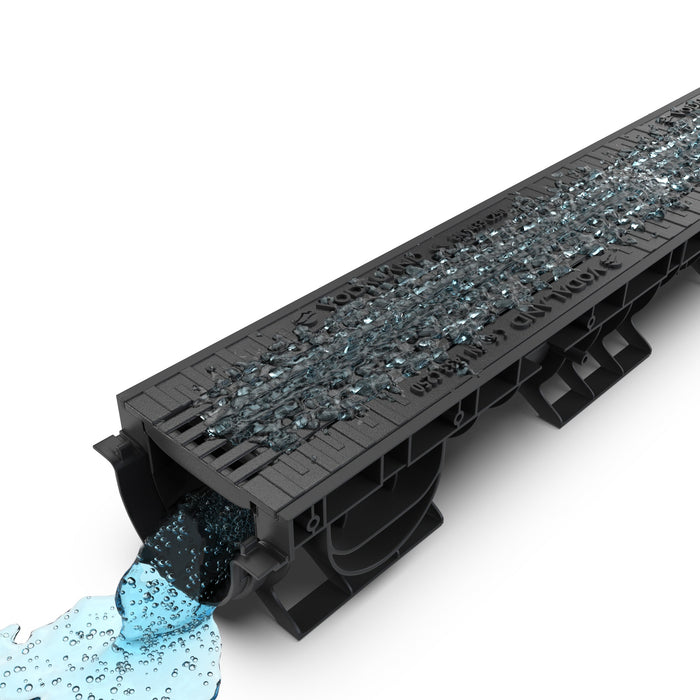

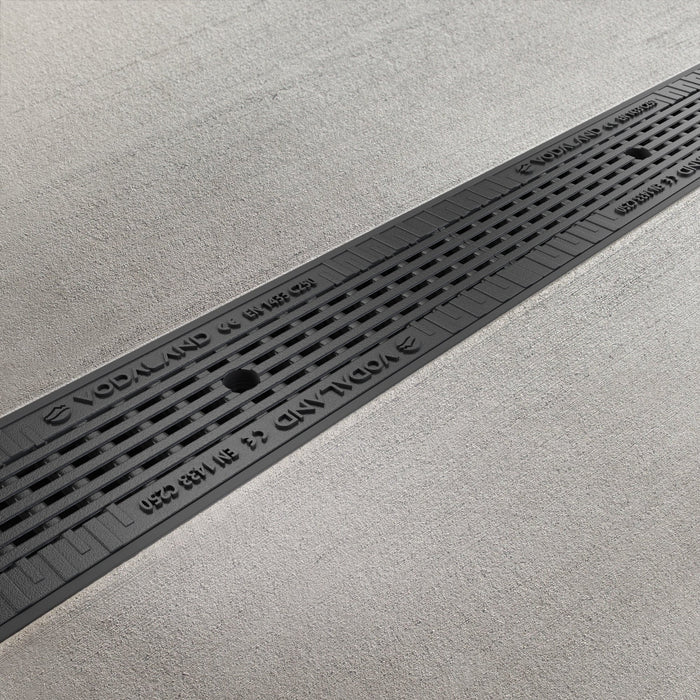

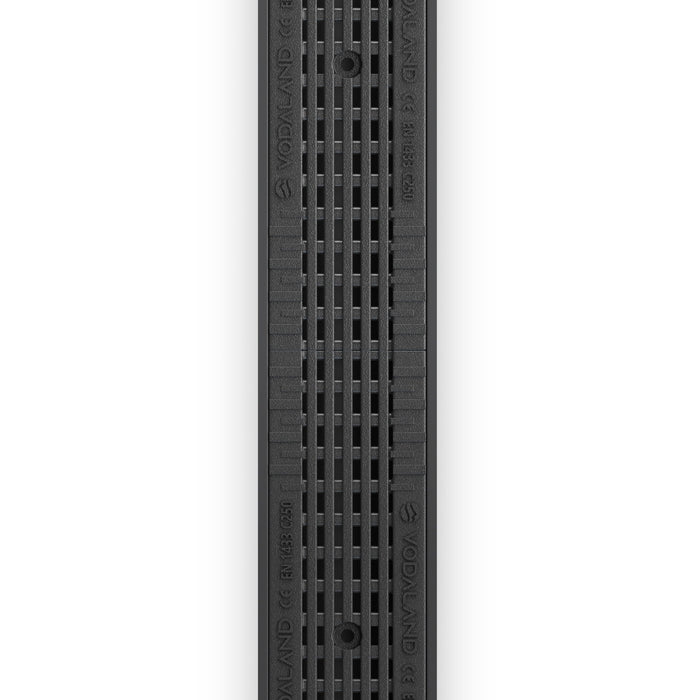

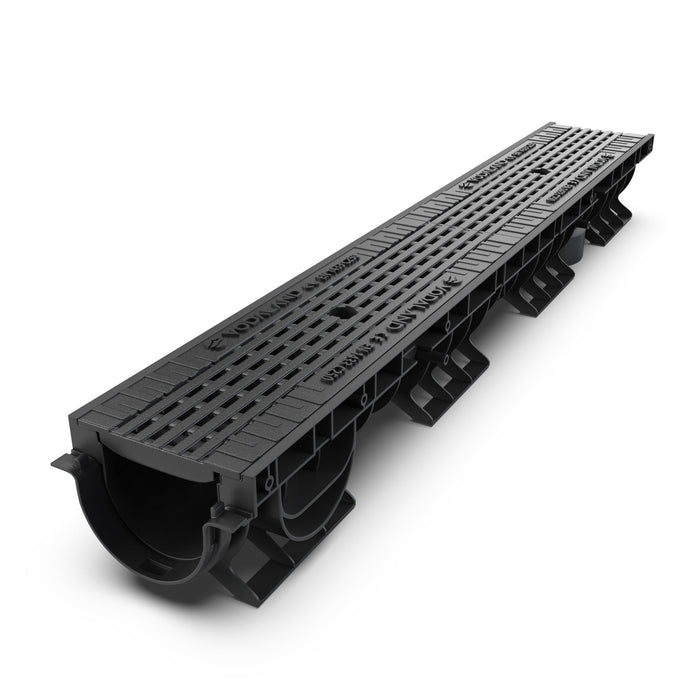

The 4” Channel Cast Iron ADA Package is a strong and durable channel drain system designed to handle medium-duty traffic like passenger vehicles and trucks. It features a sturdy cast iron grate with a special coating that helps prevent rust and wear. The grate is securely locked in place for added stability, ensuring reliable performance you can count on over time.

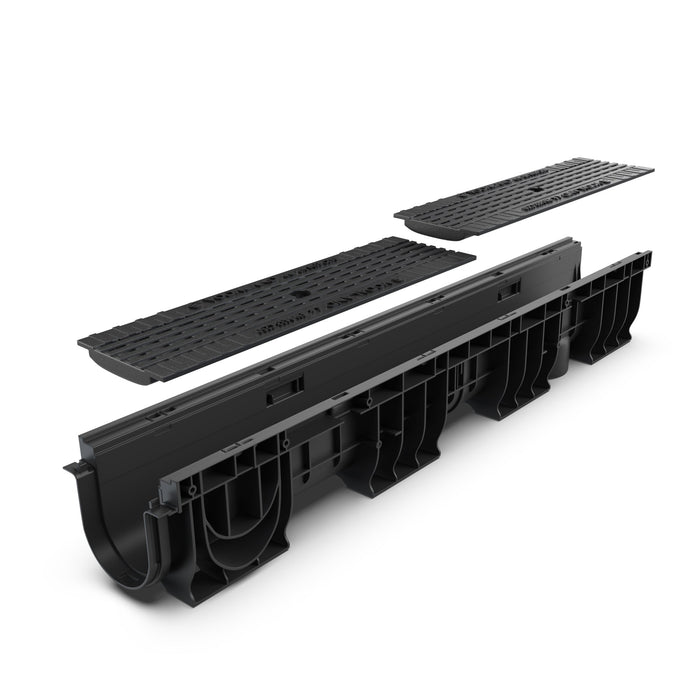

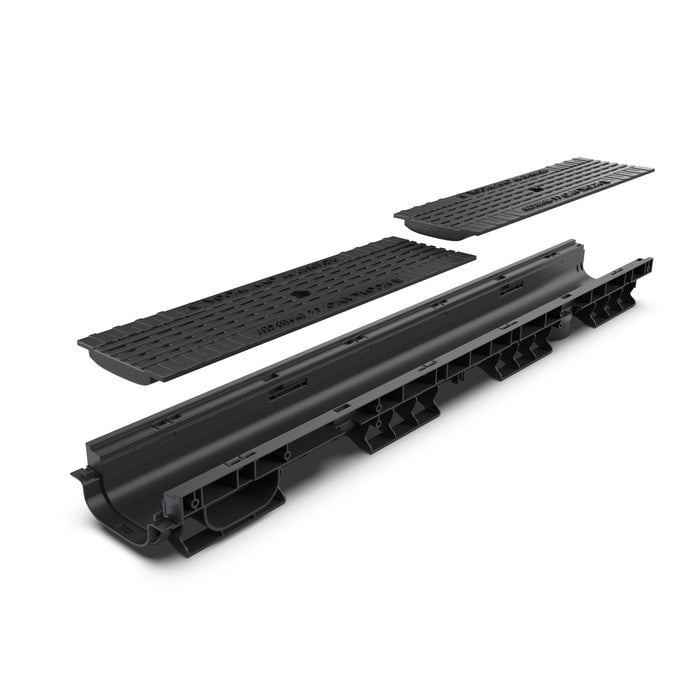

The channel body is available in two options: neutral channels with consistent depth, and pre-sloped channels that increase in depth by 1% along the run. All channels feature a snap-and-lock connection for easy, continuous installation at various lengths. Each channel also includes two 90-degree turn options for added layout flexibility.

Technical Specifications:
●  Material: PPE Plastic – Ductile Cast Iron (Grating)
● Dimensions: 39 ⅜” L X 6 ⅛” W
● Load Capacity: C Load Class – 55,000 LBS
● Internal Width: 4”
● Connection type: Snap and Lock
● Grating color: Ductile Cast Iron

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
