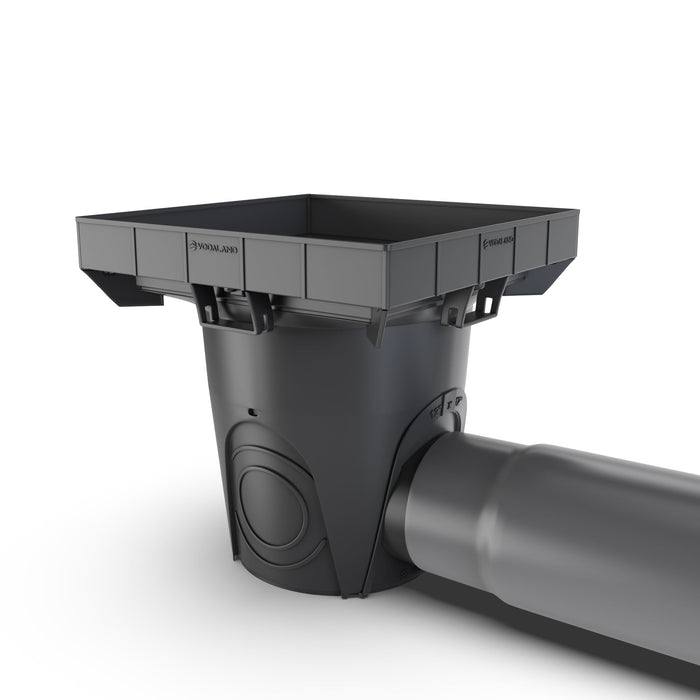

12x12 NEO Catch Basin Package

The 12x12 NEO Catch Basin Package is a complete drainage solution that includes the conical basin, nozzle, siphon, and debris basket. Designed for residential and light commercial applications, this all-in-one package provides efficient surface water collection, improved debris management, and odor control in a compact, easy-to-install system.

Key Features:
● Complete Drainage Package – Includes the basin, nozzle, siphon, and debris basket.
● Multiple Outlet Options – Side outlet connections available in 2 ½" and 4" sizes.
● Bottom Outlet Flexibility – Bottom outlet connections available in 2 ½", 4", and 6" sizes.
● Conical Design – Improves water flow and reduces debris accumulation at the bottom of the basin.
● Odor Control – Siphon helps prevent foul air and sewer gases from escaping through the drain.
● Reduced Maintenance – Basket captures debris before it enters downstream piping and is easily removable for cleaning.

Expanded Product Overview:

The 12x12 NEO Catch Basin Package combines all the essential components needed for an effective point drainage system into one convenient package. Featuring a compact basin, this system is ideal for capturing and managing surface water in residential and light commercial environments.

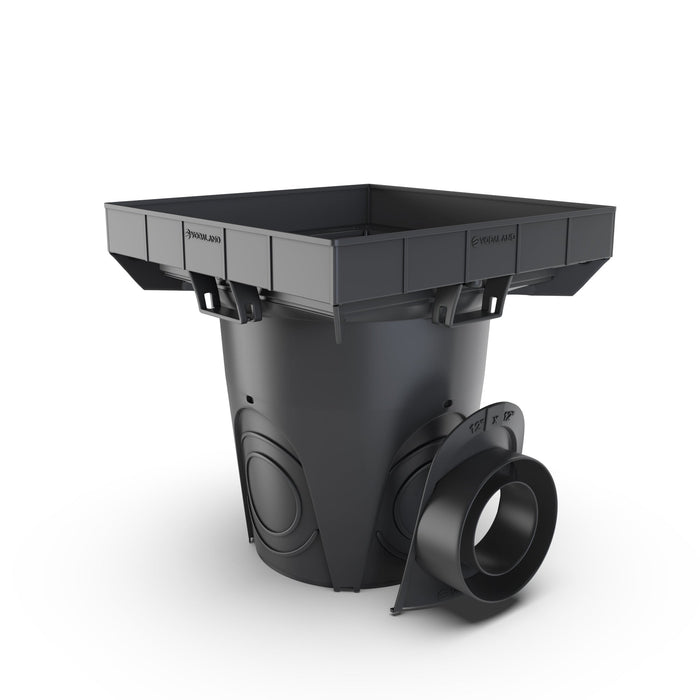

The included nozzle provides side outlet options for 2 ½" and 4" pipe connections, while the basin's bottom outlet configuration accommodates 2 ½", 4", and 6" piping for maximum installation flexibility. The conical shaping promotes better water flow through the basin while helping prevent dirt, sediment, and debris from collecting at the bottom. This unique design improves drainage efficiency and simplifies maintenance.

The included siphon creates a water seal that helps prevent unpleasant odors and sewer gases from escaping while reducing the amount of debris that can enter downstream drainage lines. Together, these components create a reliable drainage system that is easy to install, maintain, and customize.

Common Installations:
● Patios
● Pool Decks
● Walkways
● Courtyards
● Landscaping Areas

Technical Specifications:
● Basin Size – 11 ½" L x 11 ½" W x 11 ½" H
● Included Components – Basin, Nozzle, Siphon, and Conical Debris Basket
● Side Outlet Sizes – 2½" and 4"
● Bottom Outlet Sizes – 2 ½", 4", and 6"

Technical Resources: Load Class Compliance
